Lutherie Techniques Defining High-End Jazz Guitars: Craftsmanship & Core Engineering Insights

An archtop jazz guitar is fundamentally a machine for managing energy. When a flat-top acoustic is plucked, the strings pull directly on the bridge, flexing the soundboard upward. On an archtop, the energy dynamic completely flips: the strings anchor at the tailpiece and break over a floating bridge, pushing downward onto the carved top with massive structural force.

Managing this intense down-pressure requires an entirely different approach to acoustics. Every physical sweep, internal graduation, and component selection dictates how efficiently string vibration converts into moving air before your amplifier ever enters the equation.

At Benedetto, our building philosophy centers on optimizing this energy transfer. Whether you are exploring the pure acoustic resonance of our hand-carved Flagship Series or demanding the rugged road reliability of our laminated Professional Series, our specialized lutherie techniques treat the guitar not as a static object, but as a dynamic acoustic circuit.

1. Hand-Carving and Plate Graduation: Balancing Structural Impedance

To maximize the acoustic voice of a carved archtop, a luthier must understand how wood naturally resists or accepts vibrational waves. If a soundboard is left too thick or uniform, it reflects string energy backward rather than absorbing it, resulting in a stiff, brittle tone with choked sustain.

While mass-market factories rely on steam and hydraulic presses to force flat plywood into a curved shape, a shortcut that crushes the wood’s internal fibers and locks in permanent acoustic stress, true craftsmanship requires sculpting the entire arch from a solid, three-inch-thick billet of premium spruce. This releases the material’s natural elasticity.

Pressed Plywood Top → Crushed fibers, high internal stress → High Impedance → Weak Acoustic Wave
Hand-Carved Solid Top → Sculpted along natural grain lines → Low Impedance → Full Structural Resonance

During our hand-carving phase, our builders vary the top plate’s thickness to create an acoustic hinge, leaving a sturdy, structural core directly underneath the floating bridge to support the heavy load of the strings. From that center point, we taper and graduate the wood, making it significantly thinner as it radiates outward toward the rims.

By thinning the perimeter right where the top meets the sides, we unlock the soundboard. The thicker center acts as a powerful piston handling the mechanical strain, while the flexible outer ring allows the entire top plate to breathe and pump a maximum volume of air.

The Art of Tap Tuning and Material Selection

Because no two trees grow with identical grain density, factory blueprints and digital calipers cannot determine final thickness. An automated machine simply cannot feel the flexible compliance of a premium wood billet or hear its internal voice.

To tune the wood accurately, our builders rely on tap tuning, a method Bob Benedetto championed throughout the lutherie world. By holding a raw, carved plate at a precise harmonic node and striking it with a knuckle, the luthier listens closely to its free-field resonant ring. We then meticulously scrape fractions of a millimeter off the interior surfaces until the plate sings with a clear, targeted musical pitch.

This deep intimacy with material acoustics is why we are incredibly selective about the timber that enters our workshop. Whether selecting wood for a standard production model or evaluating an exotic back and sides for a bespoke order, our team reviews every piece through the lens of sonic appropriateness to ensure it meets our master-grade acoustic standard.

2. Internal Mechanical Pathways: Longitudinal vs. Cross-Grain Elasticity

Once the soundboard is graduated, the luthier shapes its flexibility and projection style using internal tone bars. Rather than acting merely as structural braces to keep the top from cracking under pressure, these bars function as intentional tracks that guide how sound waves expand across the wood grain.

Parallel Architecture → Focuses energy down the grain → Fast Attack, Midrange Punch

X-Braced Architecture → Spreads energy cross-grain → Blooming Bass, Long Sustain

Our builders shape this internal architecture to tailor the instrument for specific musical environments:

• Parallel Tone Bars: Running two separate braces along the length of the top plate increases stiffness parallel to the strings. This layout accelerates the soundwaves through the straight grain, resulting in a rapid attack and a powerful, punchy midrange. This technique gives an instrument the acoustic cutting power necessary to slice cleanly through a live big band or rhythm section.
• X-Bracing: Crossing two tone bars diagonally directly underneath the bridge allows the soundboard to flex more uniformly across its entire width. This lowers the top’s overall resonant pitch, slowing down the initial burst to create a more relaxed, blooming note development with longer natural sustain. It is an architecture perfectly optimized for intimate chord-melody arrangements and solo jazz performances.

3. Component Interaction and Zero-Dampening Systems

An archtop’s acoustic response extends directly into its hardware. While heavy metal tailpieces and zinc adjustment screws are standard on solid-body electric guitars, adding that unnecessary dead weight to a carved soundboard acts like a mechanical mute, stifling the top plate’s natural vibration.

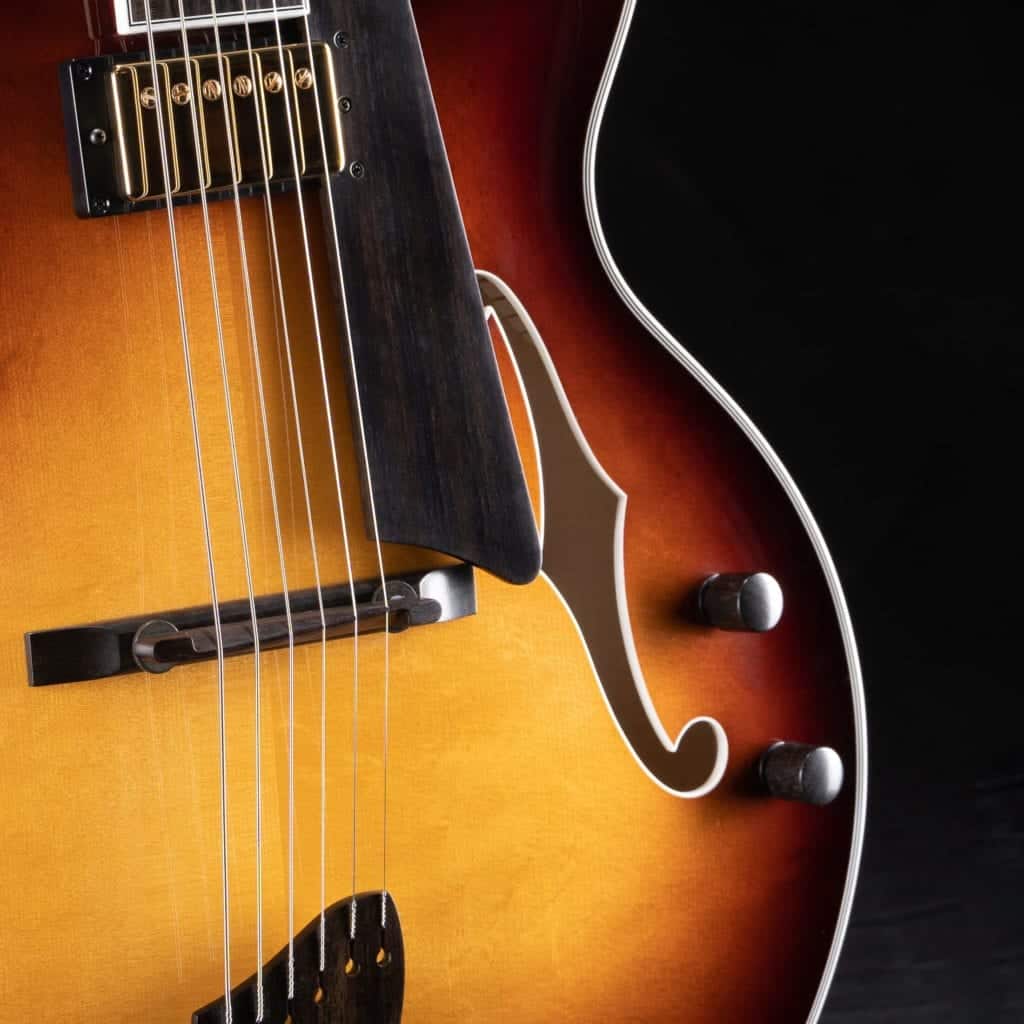

To eliminate this bottleneck, we utilize an ultra-low-mass, free-floating ebony tailpiece suspended by a high-tensile loop, keeping dead weight off the top plate entirely. We pair this setup with an ebony bridge foot that is meticulously scraped and hand-fitted to match the exact, three-dimensional curves of the guitar’s soundboard. This absolute wood-to-wood contact ensures that every ounce of kinetic string energy transfers cleanly into the acoustic body without metallic discoloration or harmonic dropouts.

4. Comfort Ergonomics and Sacrosanct Architecture

The neck profile and fretboard act as your direct physical interface with the guitar. Our builders hand-shape every neck contour, balancing a slim profile for rapid position shifts with a supportive, gradual shoulder that prevents hand fatigue during long sets. To ensure our guitars feel natural, standard baselines vary by body size: we use a 1-3/4” nut width on 16” and 17” archtops (as well as our solid-chambered The Benny), while our smaller-bodied Bambino models feature a 1-11/16” width.

While we willingly adapt comfort details to suit individual hands, the core structural engineering of a Benedetto remains firm to protect the instrument’s iconic performance. Our guitars are built around a precise 25” scale length, with intentional variations like the 24-5/8” Pat Martino Signature and the 23” Andy model. We avoid alternative scales because they alter string tension so drastically that they would require a complete structural redesign of the body cavity core.

Similarly, our body outlines and soundholes are precisely calculated for their natural acoustic compression and projection properties. While we can subtract a soundhole from a Bambino Deluxe or Bravo model to maximize feedback rejection for high-volume stages, we do not substitute our classic shapes for unvetted designs. This aesthetic discipline extends to our fingerboards, where you will never find standard dot position markers. Instead, we keep our surfaces clean and understated, or elevate them using custom motifs and traditional Fratello-style multi-ply block inlays.

5. Tailoring the Electronic and Tension Envelope

Because every jazz guitarist possesses a distinct right-hand attack, individual string gauge preferences, and specific staging requirements, an elite archtop functions best when it can be tailored to the player. Through our interactive Build Your Own Benedetto program, musicians can collaborate directly with our workshop to specify the physical and electronic layout of their guitar.

This integration is exceptionally critical when selecting and mounting pickups. We are incredibly proud of our proprietary Benedetto pickups, designed by Bob and built for us exclusively by Seymour Duncan. Whether installed on a standard production model or requested for a custom build, if a player prefers another manufacturer’s electronics, we can accommodate them, provided they fit a similar dimensional footprint.

However, moving a pickup to an unconventional spot on a carved top requires careful consideration. Altering a pickup location impacts the mechanical pathways of our internal bracing patterns and tooling fixtures, meaning electronic placement must be balanced seamlessly against structural physics.

The Mark of True Lutherie

An exceptional archtop cannot be built by treating its components in isolation. The true mastery of these lutherie techniques lies in how seamlessly they work together: our hand-carved plate graduation handles the physical down-pressure of the bridge, our tuned tone bars direct the soundwaves, and our zero-dampening ebony hardware prevents loss of sustain.

By executing these precise engineering methods by hand, we ensure every element operates in perfect structural equilibrium. This discipline is what preserves the definitive, highly responsive jazz voice that has defined the Benedetto legacy for decades.

If you are ready to experience this engineering precision firsthand, explore the pinnacle of our hand-carved craftsmanship in the Flagship Series. For touring professionals seeking maximum road consistency and feedback rejection, you can also explore our stage-ready Professional Series.

Frequently Asked Questions

What is the difference between a hand-carved archtop and a factory-pressed guitar?

Factory-pressed guitars use heat and steam to force flat plywood into a curved shape, which crushes the wood grain and traps tension inside the guitar. Hand-carving takes a solid, thick block of premium wood and shapes the curves using hand tools. This keeps the wood’s natural elasticity intact so the entire guitar can vibrate freely and breathe.

Why are archtop guitar tops thicker in the middle and thinner at the edges?

The middle of the top plate needs to be thicker to handle the heavy downward pressure of the strings pushing onto the bridge. Luthiers shave the edges much thinner so the wood can flex. This turns the thick center into a piston and the thin edges into a flexible ring, helping the guitar pump out a lot more air and volume.

Should I choose parallel bracing or X-bracing for a jazz guitar?

It depends on the style of jazz you play. Parallel bracing runs straight down the grain, making the wood stiffer. This gives you a fast, punchy note attack with a strong midrange that cuts right through a loud big band. X-bracing crosses diagonally under the bridge, letting the wood flex more. This creates a warmer, smoother sound with more sustain—perfect for solo guitar and intimate chord-melody playing.

Why does the weight of the tailpiece and bridge matter on an archtop?

On a solid-body electric guitar, heavy metal hardware doesn’t hurt the sound. But an archtop relies on a lightweight, delicate wood top to project its voice. Putting heavy metal hardware directly on or near a carved top acts like a mute, soaking up the string vibration and killing your acoustic tone before the sound ever reaches the amplifier.
