Inside a Custom Guitar Build: Guide to Jazz Archtops

Understanding the Custom Guitar Build Process for Handcrafted Archtop Guitars

Every performance environment asks something distinct from a guitarist. A loud club date, an intimate recording session, or a daily university masterclass all demand a specific acoustic and physical response. While a standard archtop is engineered to balance acoustic depth with real-world utility, a fully customized guitar build allows you to tailor that perfect balance precisely to your hands, your lifestyle, and your musical voice.

Backed by a half-century legacy of traditional craftsmanship established by our founder, Robert Benedetto, this guide steps inside our Savannah, Georgia workshop. Here is how we use structural platforms, hand-carving arts, and exact calibration standards to build your ultimate jazz instrument.

The Custom Build Blueprint: Selecting Your Design Foundation

A successful custom project begins by exploring our established model architectures. These standard specifications are the result of decades of collaboration with the most discerning players on the planet. If a stock configuration isn’t quite “you,” these proven platforms serve as the ideal jumping-off point to scale the size, construction, and acoustic footprint of your instrument:

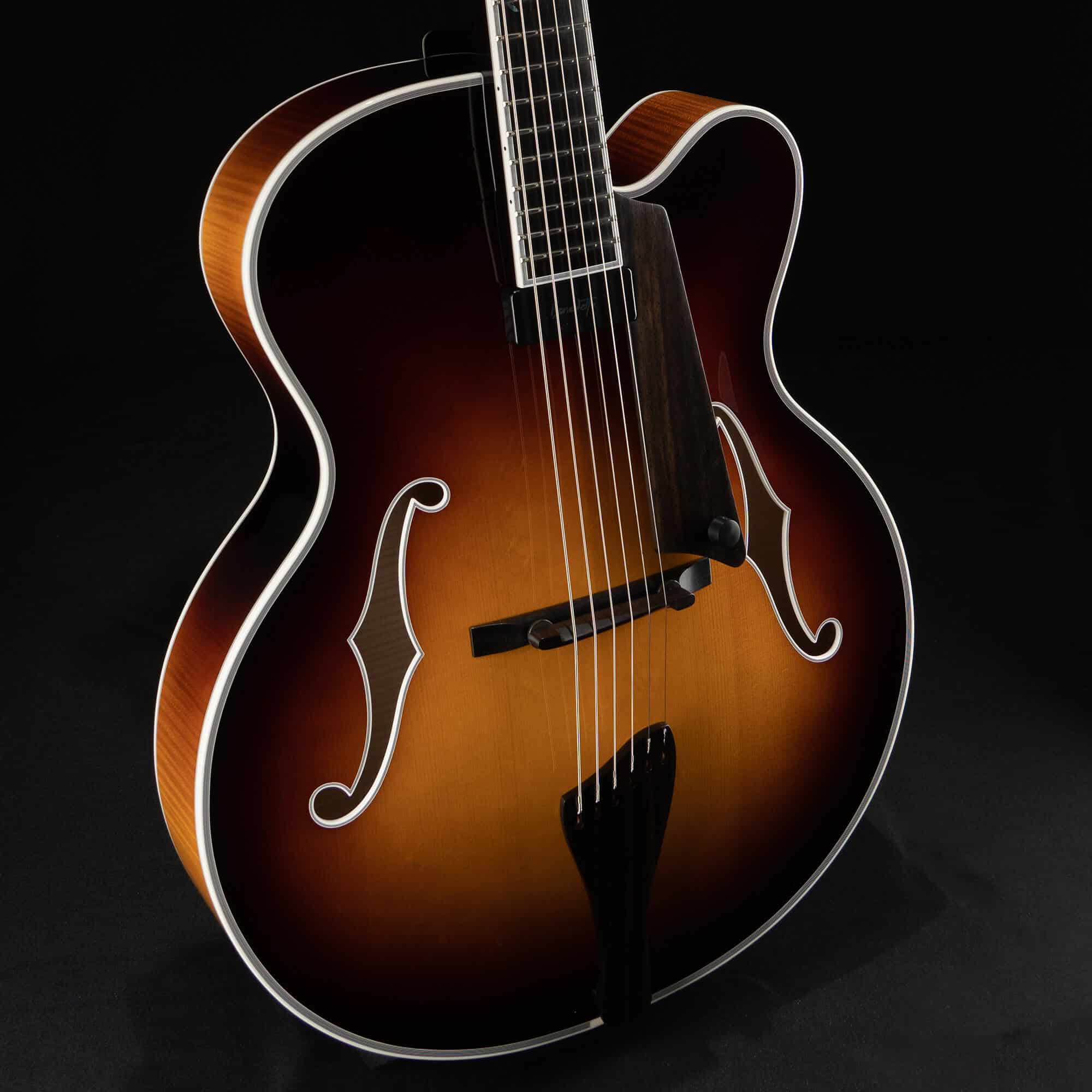

17″ Hand-Carved Flagship Models: For the absolute apex of acoustic fidelity, your custom project can begin with our premier solid-wood architecture. Masterpieces like the Cremona or Manhattan represent the world’s gold standard for uncompromising acoustic projection and rich, three-dimensional tonality.

16″ Hand-Carved Flagship Models: Offering the same pristine acoustic resonance and solid-wood construction as our larger flagships, these profiles (such as the 16B) provide a slightly scaled-down, more intimate ergonomic fit without sacrificing an ounce of complex harmonic warmth.

16″ Laminated Professional Series Models: These gig-ready profiles—including our legendary Bravo—are the quintessential workingman’s guitars. Built with a laminated top, they deliver exceptional structural stability, reliable feedback rejection on loud club stages, and comfortable playability for long hours of teaching or performing.

14.5″ Laminated Professional Series Models: Perfect for guitarists transitioning from solid-body electrics or those seeking maximum portability, compact profiles like the Bambino offer a highly feedback-resistant footprint while still packing a distinctive, authentic jazz soul.

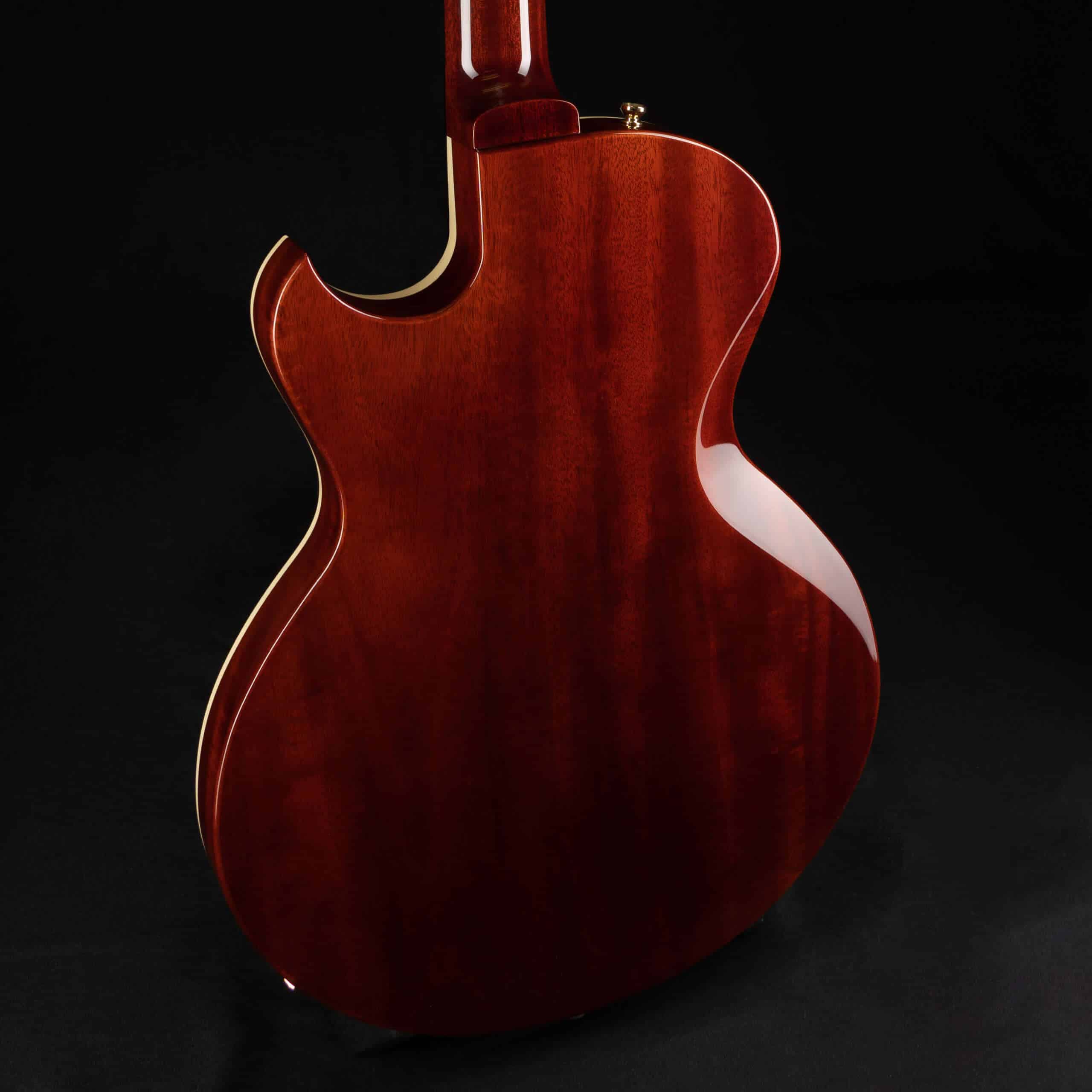

14.5″ Chambered Solid Body Professional Series Models: Designed for the modern player, models like the Benny feature a chambered solid-body architecture. This unique platform delivers incredible versatility, blending effortless electric clarity and exceptional feedback rejection with an acoustic-like openness suited for both traditional jazz and contemporary fusion phrasing.

Looking for immediate inspiration? If you prefer to purchase a finished instrument rather than commissioning a new build, browse Bob’s Boutique. This unique online showroom features pre-owned and select consignment guitars from our workshop’s history, showcasing rare exotic woods, experimental finishes, and unique aesthetic appointments. On rare occasions, you may also find brand-new, freshly completed SPEC instruments available for immediate acquisition.

Selecting Master-Grade Tonewoods for Archtop Construction

In a premier archtop, wood is chosen for its acoustic properties long before its visual appeal is considered. The interaction between the top soundboard and the back plate dictates the clarity, sustain, and projection of the completed guitar.

The Time-Tested Pair: Spruce and Maple

Tonewood	Structural Application	Acoustic Characteristics	Suitability for Jazz
Select Spruce	Carved Top (Soundboard)	Lightweight yet rigid; responds instantly to a subtle touch. Fine or wide grain balances warmth and bite.	Ideal for acoustic warmth, rich harmonic overtones, and immediate resonance.
Figured Maple	Back, Sides, and Neck	High density with striking visual grain (flame, quilt, bird’s eye); reflects sound waves efficiently.	Enhances note definition; ensures chords remain articulate across all registers.
Ebony	Fingerboard, Bridge, Tailpiece	Extremely dense, glass-smooth texture; provides excellent wear resistance over decades.	Contributes to a crisp note attack, structural stability, and a clean aesthetic.

The Luthier’s Craft: Hand-Carving, Binding, and Tap Tuning

The definitive boundary between an assembly-line instrument and a handcrafted archtop is the human touch. Utilizing traditional chisels, finger planes, and scrapers, a master craftsman coaxes a fluid, arched contour out of a book-matched, radial sawn billet.

We customize the top profile based on your preference for a built-in pickup or a purely acoustic voice. Once shaped, the body is wrapped in your choice of binding—ranging from traditional multi-ply to natural wood bindings that elegantly frame the body, headstock, and f-holes.

The Art of Tap Tuning and Bracing

An archtop’s top and back function as a precision-tuned acoustic diaphragm. During a custom build, our luthiers practice the time-honored technique of tap tuning:

• The luthier holds the carved plate at a specific node and taps the wood, listening intently to the pitch and decay of its natural ring.
• By carefully shaving away fractions of a millimeter from specific regions, they optimize the elasticity and resonant frequencies of the top.
• The internal bracing is then carved and adjusted. Players can choose traditional Parallel Bracing for maximum punch and cutting power, or X-Bracing for a warmer, rounder acoustic voice with increased sustain.

To understand the heritage behind these old-world techniques, we invite you to explore the profiles of our luthiers and learn about their collective decades of workshop experience.

Technical Specifications: Neck Construction and Structural Guardrails

Designing the neck and fingerboard is where ergonomics meet structural engineering, allowing the player to dictate the exact feel of the instrument within strict stability parameters.

Scale Length and Fretwork Geometry

We build our instruments around a 25-inch scale length, and that choice is entirely intentional. A common trap folks fall into is thinking that changing a guitar’s scale length is as simple as slapping on a shorter neck. In reality, an archtop is a finely tuned ecosystem. The moment you move that scale, you have to reposition the bridge, the f-holes, the pickups, the internal bracing, and even the depth of the cutaway. To change it would essentially mean redesigning the entire guitar from scratch.

When Bob Benedetto established our standard 25-inch scale, he did it for two reasons—one based on respect, the other on physics:

• Deference to a Legend: Bob chose these dimensions as a direct nod to jazz icon Johnny Smith. All of Johnny’s signature guitars featured a 25” scale and a 1-3/4” nut width. Bob, a longtime fan and friend of Johnny’s, always felt that if it was good enough for Johnny Smith, it ought to be good enough for the rest of us.
• The Tension Sweet Spot: From a builder’s perspective, Bob realized the 25” scale hits the ultimate sweet spot. It creates the perfect amount of string tension needed to really drive and flex the carved spruce top, while still giving you the smooth, effortless playability of a shorter neck.

Need a shorter reach? We know every hand is different, and some players just aren’t comfortable on a 25” scale. Instead of compromising the architecture of our flagship models, we built a dedicated alternative: The Andy Model. It’s essentially a smaller, stripped-down 16-B with a carved top and back and a compact 12” x 3” body depth. Most importantly, it’s engineered specifically for a comfortable 23-inch scale length and a 1-11/16” nut width.

Neck Profiles and Custom Inlays

Neck shapes are individually carved to match the anatomy of your hand—ranging from a slim, modern “D” profile to a full, vintage round contour. Fingerboard options include a clean, unbound ebony face, scalloped Fratello-style blocks, or our signature floral inlays precisely routed and hand-fit into the ebony.

Hardware Integration: Calibrating Electronics and Control Layouts

An archtop’s hardware must complement its acoustic properties, never choke them. Every component added to a custom build is meticulously integrated into the guitar’s ecosystem:

• Built-in Humbuckers (The Electric Approach): Single or dual full-sized humbuckers are routed directly into the top plate. This increases sustain and provides exceptional feedback rejection for high-volume stage work. This setup utilizes traditional top-mounted controls and custom ebony knobs.

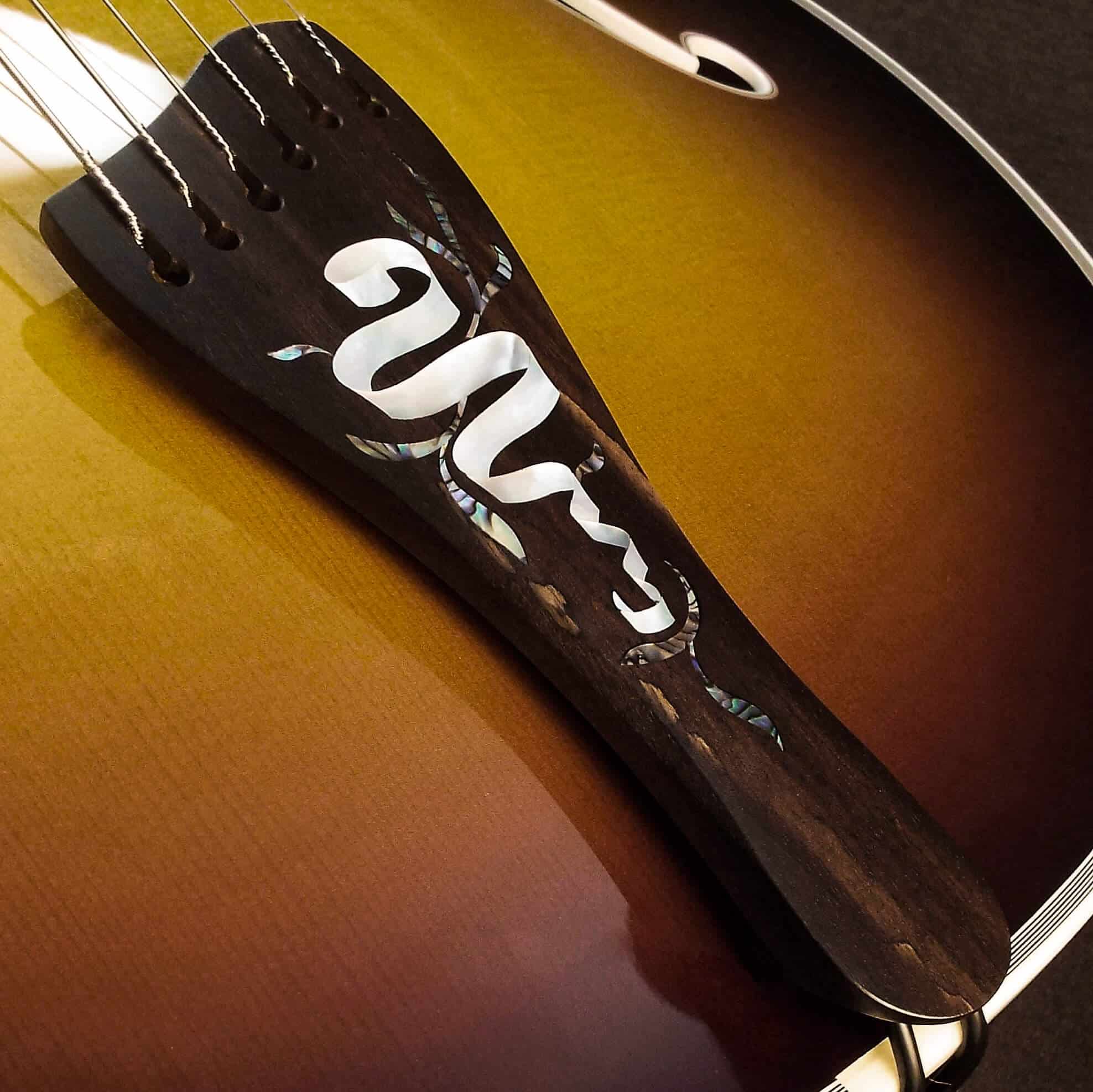

• Solid Ebony Tailpiece & Fingerrest: Tailored wood mass optimizes string energy transmission without adding metallic harshness to the acoustic decay.
• Floating Mini-Humbucker (The Purist Approach): Mounts directly to the end of the fingerboard extension without touching the carved soundboard, allowing the top to vibrate entirely unhindered. Volume and tone wheels are subtly tucked beneath the edge of the pickguard.

The Precision Setup: Factory String Gauges and Playability

The final assembly and setup represent the bridge between physical construction and effortless playability. Our technicians meticulously adjust the neck relief via the truss rod, cut the bone nut slots to exacting tolerances, crown the frets flawlessly, and set the bridge height to achieve a low, fluid action that eliminates buzz while preserving dynamic range.

To ensure the top is properly loaded and intonates perfectly from the very first note, we calibrate our instruments using specific factory string gauges tailored to the body construction:

• Carved Archtop Models (16″ & 17″ Bodies): Setup with heavy-gauge, round-wound strings (typically a hybrid .014 to .052 set to fully drive the hand-carved spruce top and deliver a classic, thick jazz punch.
• Laminate/Professional Models: Setup with traditional .012 sets, optimizing string tension for quick acoustic response and electric clarity through a built-in pickup.
• Chambered Solid-Body Models (The Benny): Calibrated with a lighter .011 gauge set, accommodating players who require a portable, feedback-resistant instrument capable of handling both traditional jazz lines and modern fusion phrasing.

This uncompromising dedication to building quality is why our instruments have been the trusted choice for generations of jazz artists. You can explore our extended family of world-renowned players on our Players Roster.

Elevate Your Artistry

Commissioning an archtop is an intimate collaboration between player and craftsman, resulting in an instrument built to carry your musical legacy for decades. From the initial wood selection to the final turn of a tuner, every step of the process is handled by a small team of dedicated luthiers who live for the craft.

Are you ready to design an instrument tailored specifically to your touch, tone, and musical vision? Contact our workshop todayto begin your custom guitar build journey.

Frequently Asked Questions (FAQ) for Custom Archtop Builds

What is the advantage of a custom guitar build over a standard archtop?

A custom build allows you to tailor structural dimensions, neck profiles, and electronic configurations precisely to your playing style and ergonomic needs. It blends these distinct traits into a singular, hyper-personalized instrument built just for you.

How does hand-carving and tap tuning affect the sound of a custom archtop?

Hand-carving shapes solid wood plates using traditional finger planes and chisels to optimize its inherent acoustic properties. Master luthiers use tap tuning to monitor the resonant ring of the wood, carefully shaving fractions of a millimeter away to align the soundboard with the internal bracing, optimizing dynamic response and feedback management.

Can I choose alternative scale lengths or fan frets for a custom Benedetto build?

We build around traditional 25-inch scale fingerboard geometries to preserve accurate string tension, top loading, and bridge tracking. We do not build fan-fret or multi-scale configurations, as they fundamentally disrupt our historical architectural templates.

What string gauge is used during the final factory setup of a custom archtop?

Fully carved 16″ and 17″ flagship instruments are set up with a heavy round wound hybrid set (starting with a .014 or .018 high string) to adequately drive the spruce top. Laminate professional models utilize traditional .012 sets, while chambered solid-body models like The Benny are optimized for a lighter .011 gauge set.
